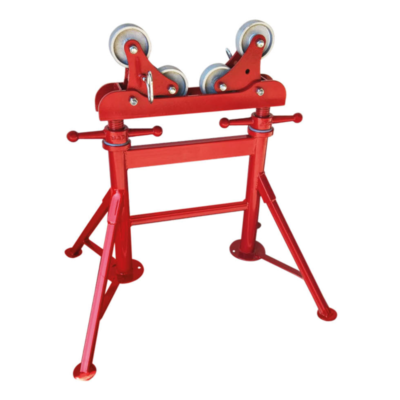

MULTI-ROLL PIPE ROLLER

B&B introduces the new Multi-Roll Pipe Roller. The new and improved Multi-Roll can raise and lower pipe to fit up under load and accommodate up to 36" pipe with no width adjustment necessary, thereby saving time and increasing safety. Available with steel, rubber and stainless steel wheels. All wheels lock, restricting pipe rotation.

Specifications

  • Offers additional functions as compared to the fixed height model.
  • All ACME adjustment allows pipe raising and lowering under load.
  • 3,000 lbs. weight capacity (w/ steel wheels).
  • Pipe capacity is 2" - 36".
  • Pipe Brake System allows wheels on both sides of the Jack to lock, restricting pipe rotation.
  • Extra wide wheels reduce pipe travel.
  • Shipping weight 62 lbs.

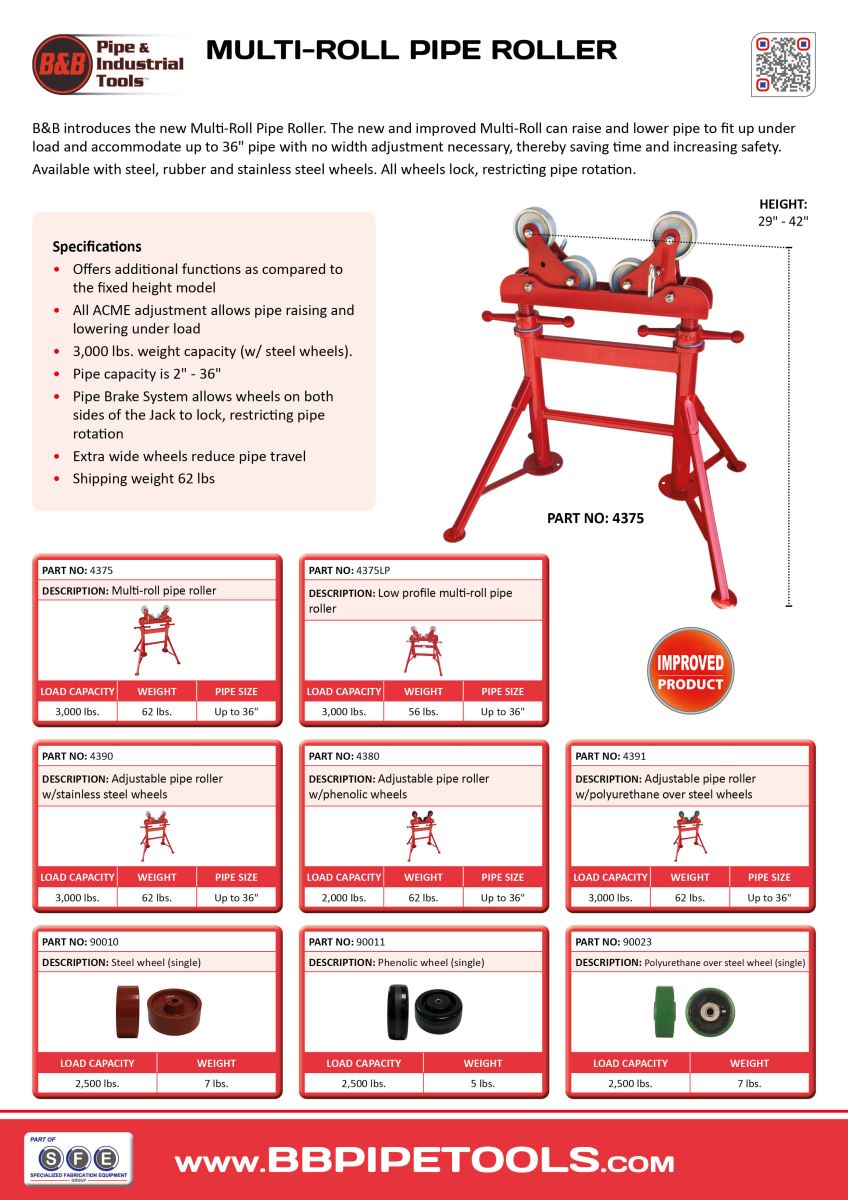

  • BROCHURE
