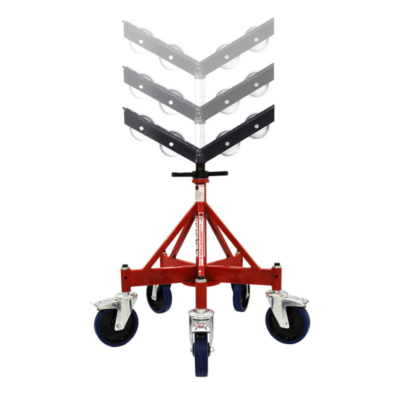

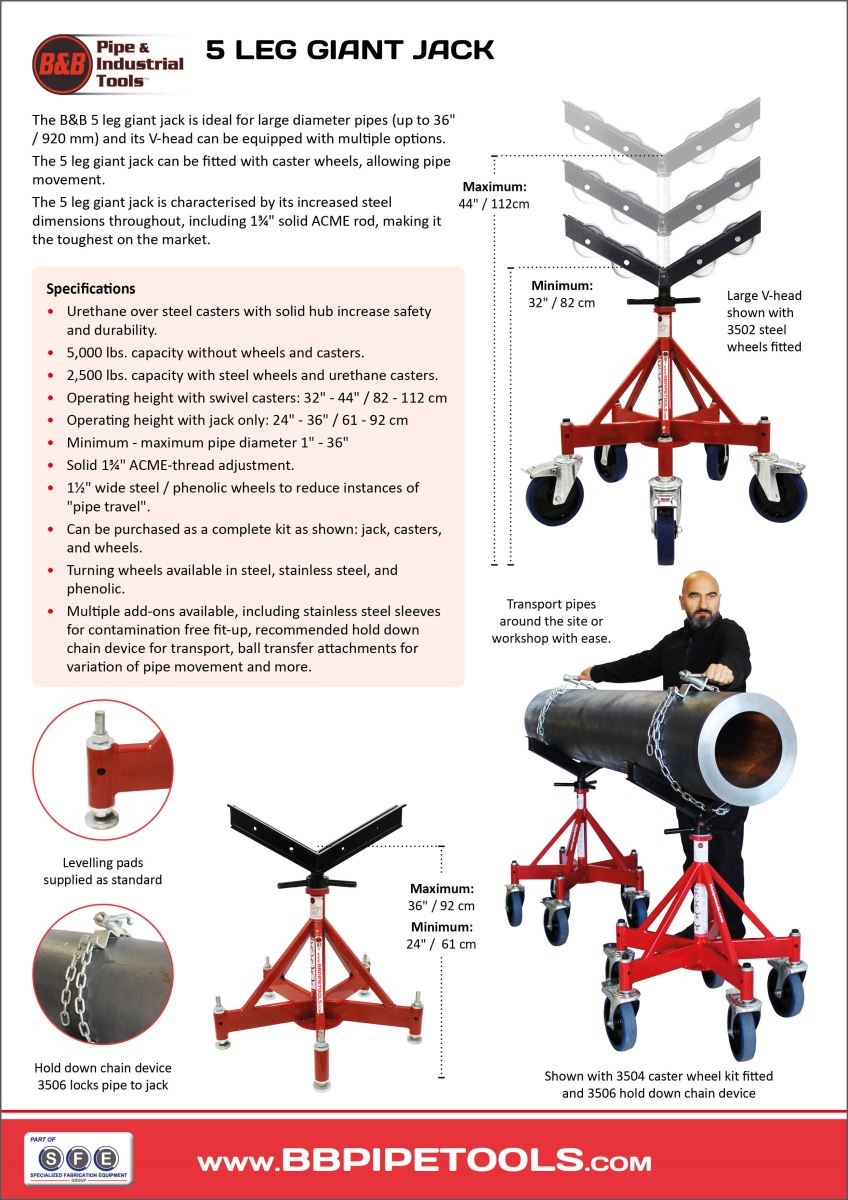

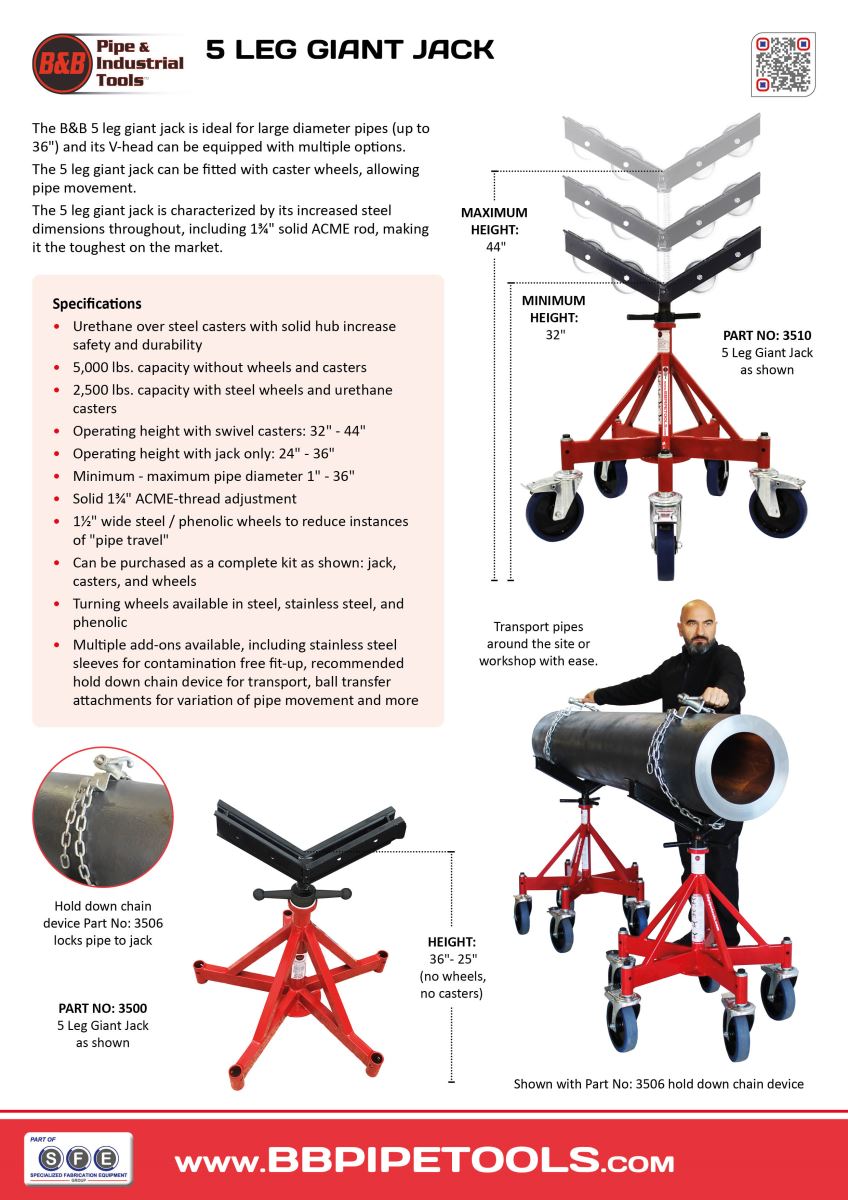

5 LEG GIANT JACK

The B&B 5 leg giant jack is ideal for large diameter pipes (up to 36" / 920 mm) and its V-head can be equipped with multiple options.

The 5 leg giant jack can be fitted with caster wheels, allowing pipe movement.

The 5 leg giant jack is characterised by its increased steel dimensions throughout, including 1¾" solid ACME rod, making it the toughest on the market.

Specifications

• Urethane over steel casters with solid hub increase safety and durability.
• 5,000 lbs. capacity without wheels and casters.
• 2,500 lbs. capacity with steel wheels and urethane casters.
• Operating height with swivel casters: 32" - 44" / 82 - 112 cm
• Operating height with jack only: 24" - 36" / 61 - 92 cm
• Minimum - maximum pipe diameter 1" - 36"
• Solid 13/4" ACME-thread adjustment.
• 11/2" wide steel / phenolic wheels to reduce instances of "pipe travel".
• Can be purchased as a complete kit as shown: jack, casters, and wheels.
• Turning wheels available in steel, stainless steel, and phenolic.
• Multiple add-ons available, including stainless steel sleeves for contamination free fit-up, recommended hold down chain device for transport, ball transfer attachments for variation of pipe movement and more.
