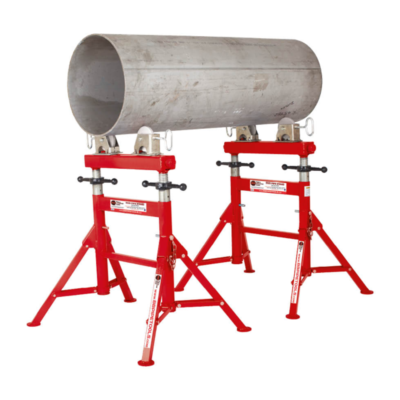

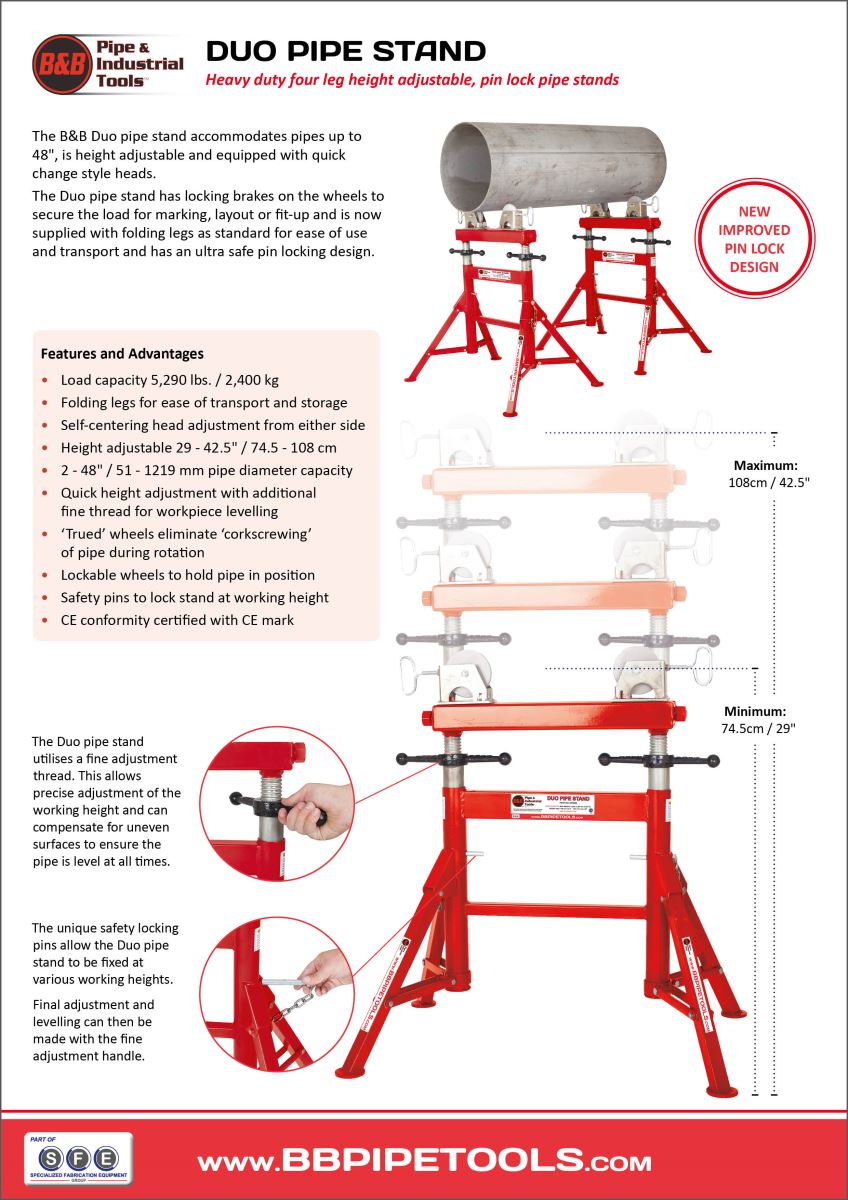

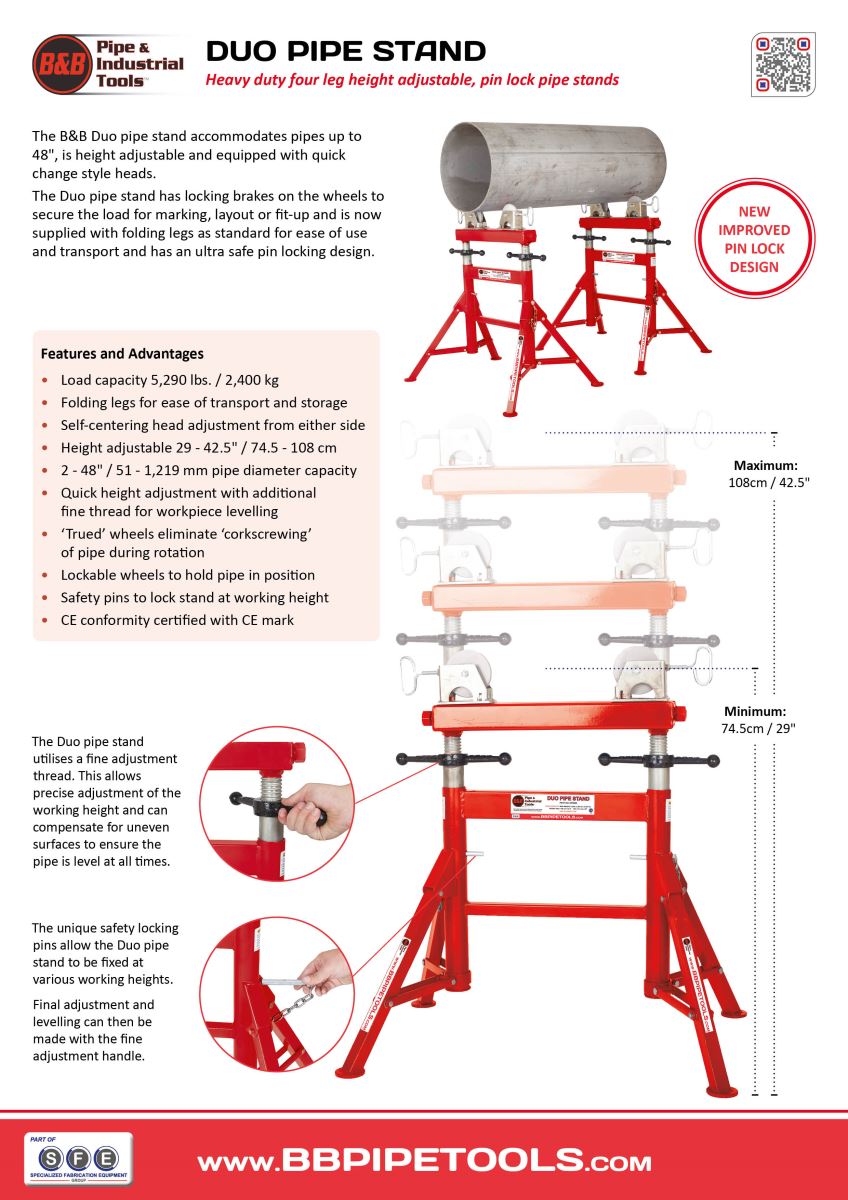

DUO PIPE STAND

Heavy duty four leg height adjustable, pin lock pipe stands

The B&B Duo pipe stand accommodates pipes up to 48", is height adjustable and equipped with quick change style heads.

The Duo pipe stand has locking brakes on the wheels to secure the load for marking, layout or fit-up and is now supplied with folding legs as standard for ease of use and transport and has an ultra safe pin locking design.

Features and Advantages

• Load capacity 5,290 lbs. / 2,400 kg
• Folding legs for ease of transport and storage
• Self-centering head adjustment from either side
• Height adjustable 29 - 42.5" / 74.5 - 108 cm
• 2 - 48" / 51 - 1,219 mm pipe diameter capacity
• Quick height adjustment with additional fine thread for workpiece levelling
• ‘Trued’ wheels eliminate ‘corkscrewing’ of pipe during rotation
• Lockable wheels to hold pipe in position
• Safety pins to lock stand at working height
• CE conformity certified with CE mark
